Spreadsheets
Background and Motivation
PET data often comes in the form of a spreadsheet for example blood data can be attached to a subject or study via a BIDS formatted TSV, a pmod .bld file, or a Microsoft Excel document. For that reason this entire section is dedicated to the topic of spreadsheets and PET blood/radioligand/radioactivity data contained therein.
Handled Types of Spreadsheets (known)
Excel
Here is an example of a Many Subject Spreadsheet paired with a single subject spreadsheet these can be used when updating BIDS datasets w/ homogeneous scanner/experiment data along with heterogeneous (subject) data.
Some more notes/quirks about Excel:

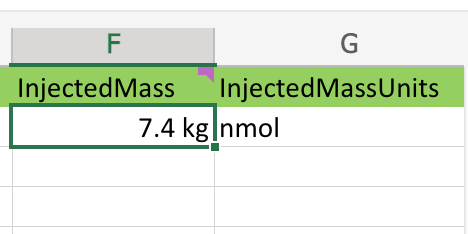

Excel sometimes has a mind of it’s own, see how this value for InjectedMass appears in the picture below:

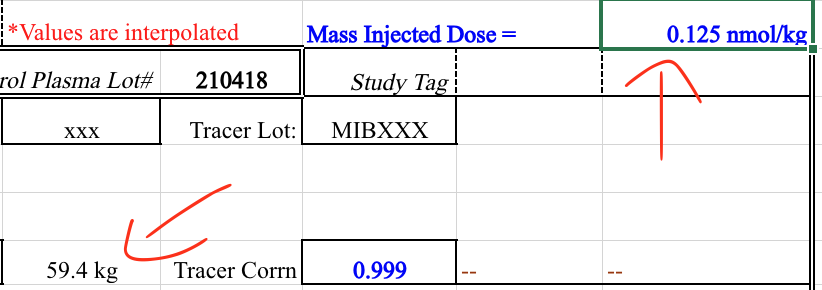

As we can see there appear to be units contain in the source cells, and Excel helped us out by extracting them and also failing to cancel them during the multiplication.
It appears Excel “inferred” the units from the source data, which is not what we want.
In the previous example what we thought might have been user error, was not. However, where there are users, user error will occur. This is one of the many reasons that BIDS relies on the bids-validator; automation doesn’t get tired or have Fridays.

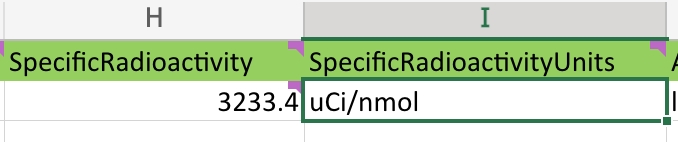

See how in this example the user simply forgot to convert from microcuries to Becquerels:

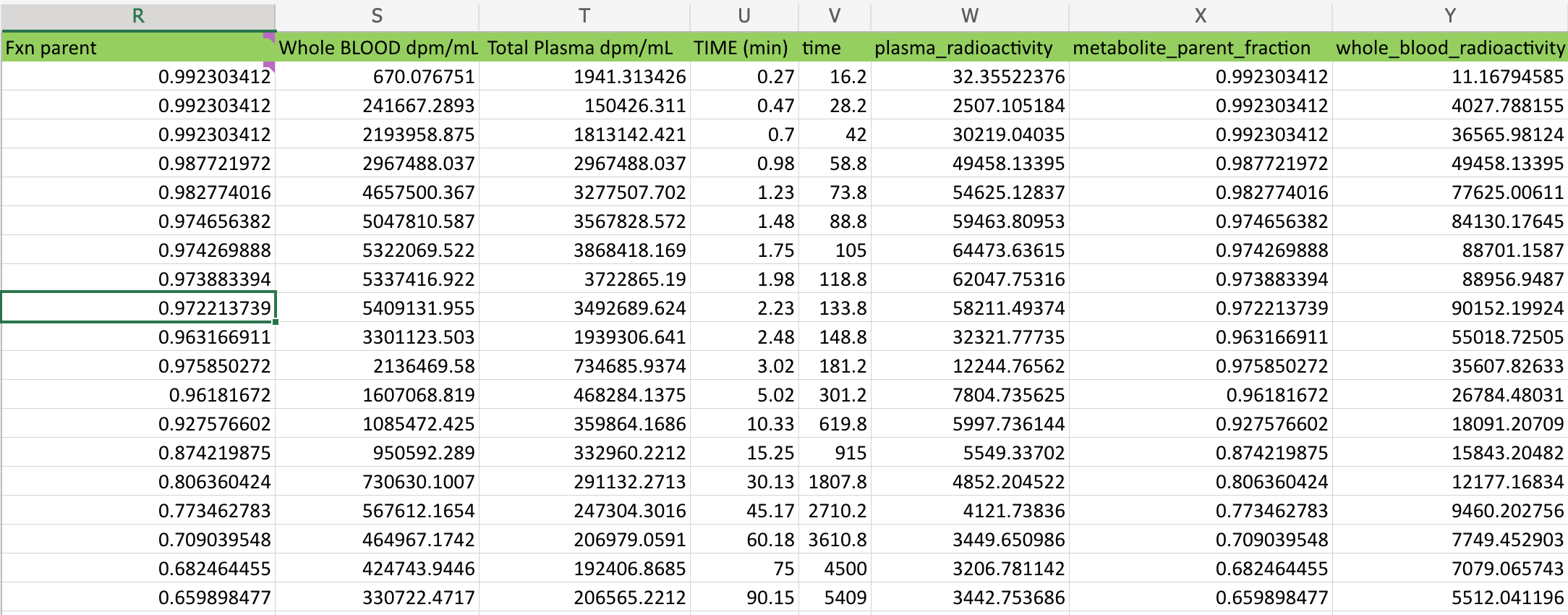

Occasionally, a user will chose to inject a BIDS friendly column next to a non-BIDS friendly column. This can be lead to some confusion when browsing through a spreadsheet. However, PET2BIDS pays it no mind and neither should you. Best practice would be to keep all BIDS friendly columns together in a single sheet, but this is not a requirement. This is a feature and not a bug.
As we can see above a user pasted the original values into this sheet and then converted them into BIDS friendly columns and units. pypet2bids looks over every column in every sheet, it doesn’t attach any meaning to where in a spreadsheet that a column exists.
PMOD
Auto Sampled Data
In some scans an auto-sampler is used in conjunction with manual sampling. The data collected from these auto-samplers is often provided in the form of a time column along with a whole blood count or calculated radioactivity column.
An example of a bids compliant auto-sampled tsv can be seen here
These types of recordings are stored along side manually sampled blood data within the BIDS tree. In order to differentiate between auto-sampled and manually sampled files the recording entity is used. e.g. this file would be saved as:
sub-<label>_ses-<label>_recording-autosampler_blood.tsv
sub-<label>_ses-<label>_recording-autosampler_blood.json
sub-<label>_ses-<label>_recording-manual_blood.tsv
sub-<label>_ses-<label>_recording-manual_blood.json
There is currently no language limiting the number of columns within an auto-sampled spreadsheet, however it is required to contain the whole_blood data along with a corresponding time column. Interpolated data can be included as well, such as plasma_radioactivity, but again this is considered by some to be calculated data since it is not collected from the auto-sampler itself. Additional commentary and description over the merits and continually on going discussion concerning raw vs. derived data are deliberately omitted at this time from this document; it could fill volumes the writer is choosing to spare himself and the reader.
